Draw a Scotia, Ogee, Cima-recta & Cima-reversa

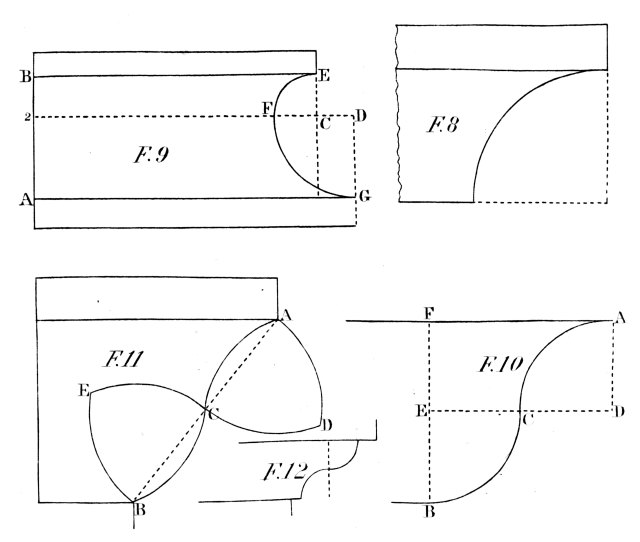

mouldings2.jpgA scotia is a concave moulding receding at the top, and pro­jecting at the bottom, which in this respect is contrary both to the ovolo and cavetto; it is also to be observed, that its profile consists of two quadrants of circles of different radii, or it may be consi­dered as a semi-ellipse taken upon two conjugate diameters, Fig. 9.

To describe the scotia, divide the height A B into three equal parts, at the point 2 draw the line 2 C D, being one-third from the top, draw E C perpendicular to C D, with the centre C and distance C E describe the quadrant E F; take the height A 2 and make F D equal to it: draw D G perpendicular to FD, from D with the distance D F describe the arc F G, and E F G will be the profile of the scotia. This moulding is peculiarly applied to the bases of columns, and makes a distinguishing line of shadow between the torii.

The ogee is a moulding of contrary curvature, and is of two kinds: when the profile of the projecting part is concave, and consequently the receding part convex, the ogee is called a cima-recta, Figs. 10 and 11 ; and when the contrary, it is then called a cima-reversa, Fig. 12.

To describe the cima-recta when the projection of the moulding is equal to its height, and when required to be of a thick curvature, Fig. 10. Join the projections of the fillets A and B by the straight line A B; bisect A B at C, draw E C D parallel to the fillet F A, draw A D and B E perpendicular to F B; from the point E describe the quadrant B C, and from the point D describe the quadrant A C, then B C A is the profile.

To describe the cima-recta when the height and projection are unequal, and when it is required to be of a flat curvature, Fig. 11. Join A B and bisect it in C, with the distance B C or C A from the point A describe the arc C D, from C with the same radius describe the arc A D cutting the former in D, the foot of the compass still remaining in C describe the arc B E, from B with the same radius describe the arc C E, from the point D describe the arc A C, from the point E describe the arc C B, then will A C B be the profile required.

The cima-reversa, Fig, 12, is described in the same manner.

Quirk mouldings sometimes occasion confusion as to their figure particularly when removed from the eye, so as frequently to make one moulding appear as two.

Click here for Part 1: Astragal, Beads, Torus, Ovolo & Cavetto.

From “Mechanic’s Companion.”
